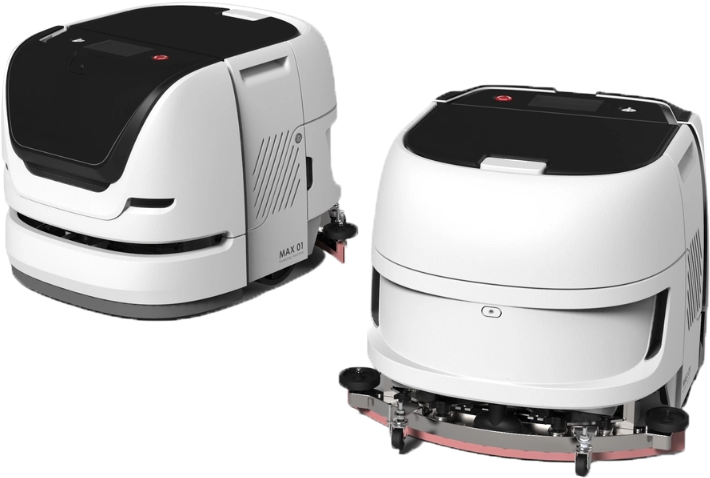

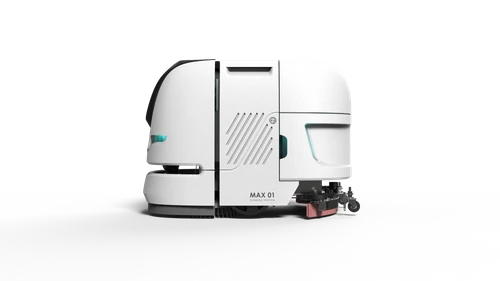

MAX - Floor Scrubber Robot
The MAX Industrial Robotic Floor Cleaning Robot is capable of Vacuuming, Washing and Squeegeeing your floors. It is ideal for large areas of hard flooring, including Hospitals, Universities and Schools, Airports, Convention Centres, Shopping Centres, Entertainment Venues, Sports Arenas, Theatres, Museums and more.
MAX is easy to operate. It can
- Define a Cleaning Area – the User can define the cleaning area by a simple click and circle on a site map
- Define a Job Site – the User can define different functions for a job site such as a charging station, water exchange station etc
- Perform a Cleaning Task – the User can as sign a cleaning task which is defined by a cleaning area
Cleaning
The MAX Industrial Robotic Floor Cleaning Robot is capable of vacuuming , scrubbing and squeegeeing hard floors.
- Front Vacuum System – Collect dust, hair etc before the scrubber

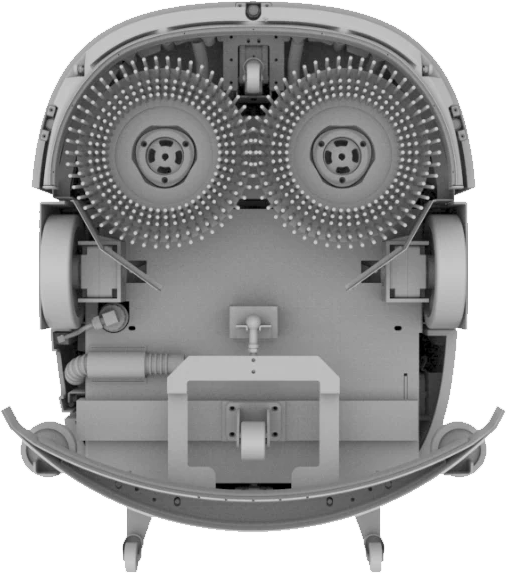

- Double Disc (Dual Brush) – Cleaning width 60cm
- Concentric Circle Squeegee System – Avoid dirty water spilling out
- Water Tank System – Separate solution and recovery tanks
Compared to a traditional mop, the MAX robot can save users up to 82% water usage.
Safety Protection Sensors
MAX has 9 sets of sensors and can avoid people, animals and other obstacles. These sensors create a safe environment while people work or interact with the robot.
MAX uses a range of sensors to detect its environment and ensure it can avoid obstacles including people. MAX uses:
- LIDAR sensors
- Infrared sensors
- Ultrasonic sensors
- 3D Vision system
- Pressure sensor bump stop
FEATURES
- Front Vacuum System – Collect dust, hair etc before the scrubber
- Double Disc (Dual Brush) – Cleaning width 60cm
- Concentric Circle Squeegee System – Avoid dirty water spilling out
- Water Tank System – Separate solution and recovery tanks
- Compared to a traditional mop, the MAX robot can save users up to 82% water usage
3 in ONE
Vacuum, Scrubber andvacuum squeegee
Indoor Localization
accuracy rate ±5cm
Environment Sensing
Human-Robot Collaboration Safety
AI Route Planning
According to Customers’ needs,Robot can plan the cleaning route
automatically
Eco Mode
Able to reduce 82% waterUsage (compare to tradition
cleaning way)
Long battery life
Up to 3 hours usage time,and battery performance
in battery life
| Model Name | AK Floor Scrubber Robot |
| Operation time (Hr) | 3 |
| Max Speed (KM/H) | 2.2 |
| Battery Spec | 29.2V / 30A |
| Power rating (W) | 1700 |
| Scrubber Motor (Watt) | 200W*2pcs |
| Vacuum Motor (Watt) | 500W*2PCS |
| Air Flow (L/SEC) | 37 |
| Vacuum Degree (KPA) | 12.3 |
| 1.5m Sound Pressure Level (DB(A)/SO3744) | 65.4 |
| Cleaning space per hour (M²/H) | 1200 |
| Cleaning Width (MM) | 600 |
| Maximum Gradeability (5) | 6% |
| Water Flow (L/M) | 0.2(min)/0.3(max) |
| Solution and Recovery Water Tank (L) | 25/25 |
| Scrubber Pad Size (MM) | 300/300 |
| Brush Pressure (KG) | 18 |
| Brush Speed (RPM) | 240 |
| Scrubber Number | 2Disc |
| Dimensions (CM) | 90x79x64 |
| Gross Weight (KG) | 175(w/o water) |
| Packaging | 1120#990*1020mm |
| Auto Recharging Unit | Provided |
| Depth Camera | Provides better 3D protection |
| Coverage Area | 3600 sq meters |
| Mop Cleaning after use | Depend on Floor condition |
| Charging Time | 3 hours |
| Auto Scheduling | YES |
| Manual Control Cleaning | YES |
| Warranty | 12 months |
| Country of Origin | Taiwan |

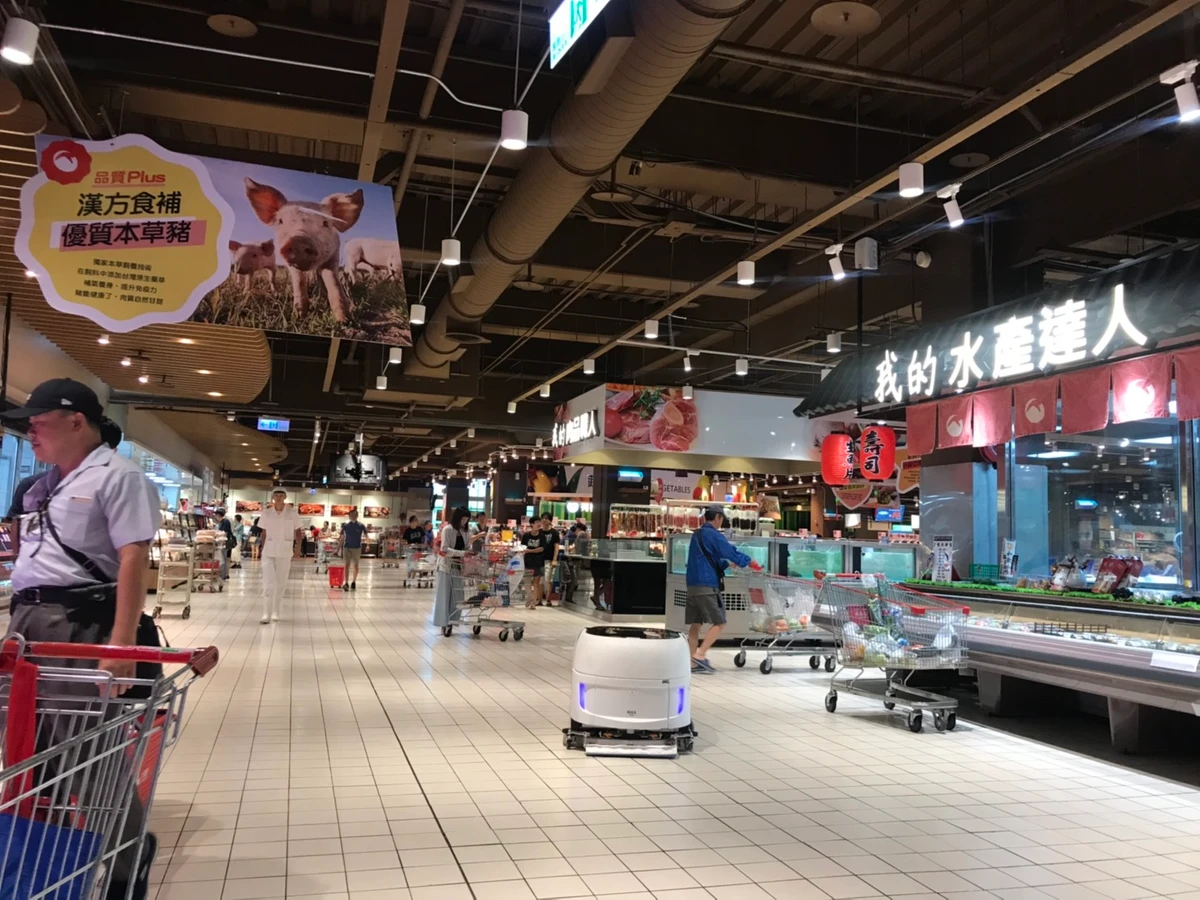

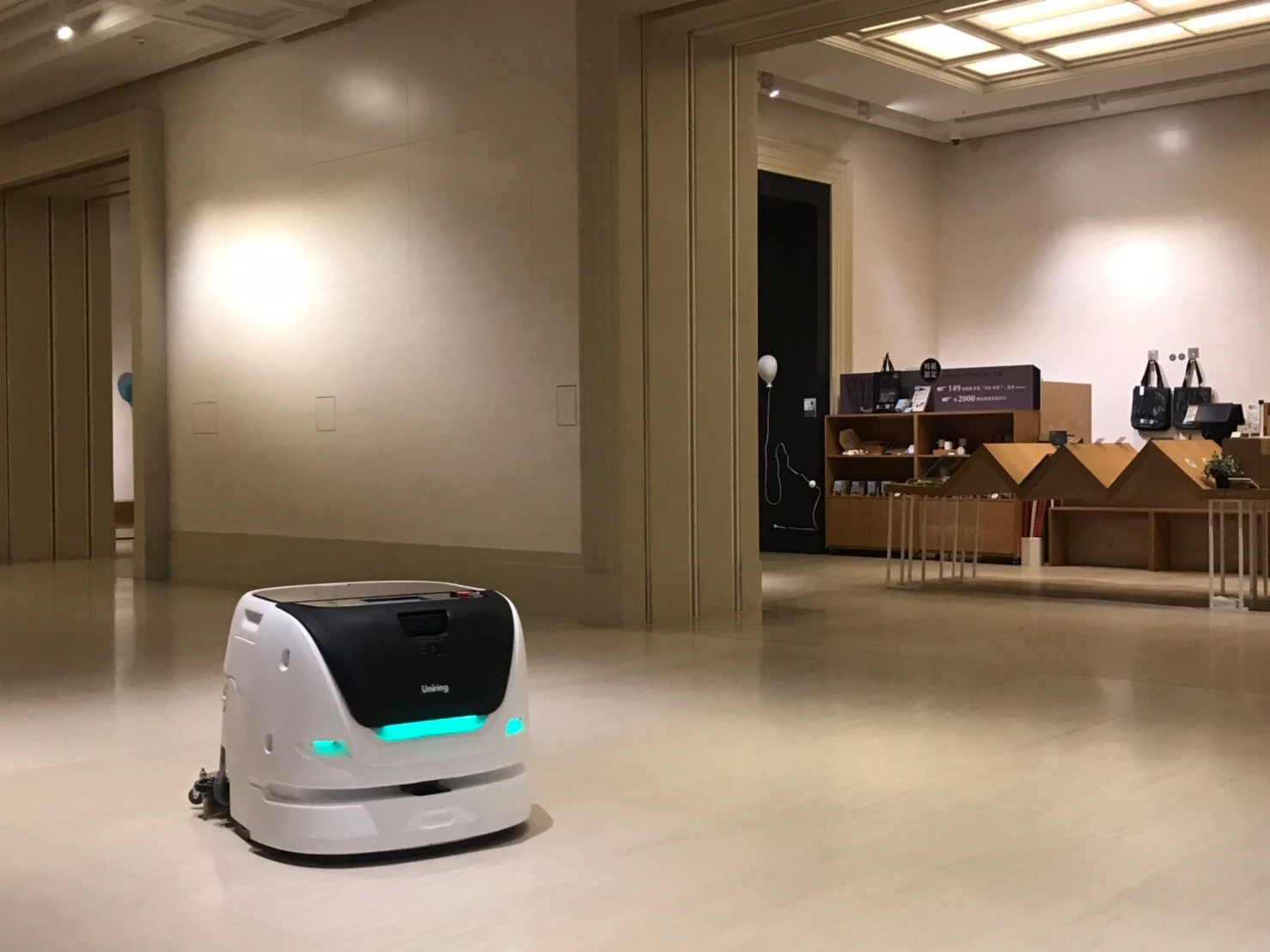

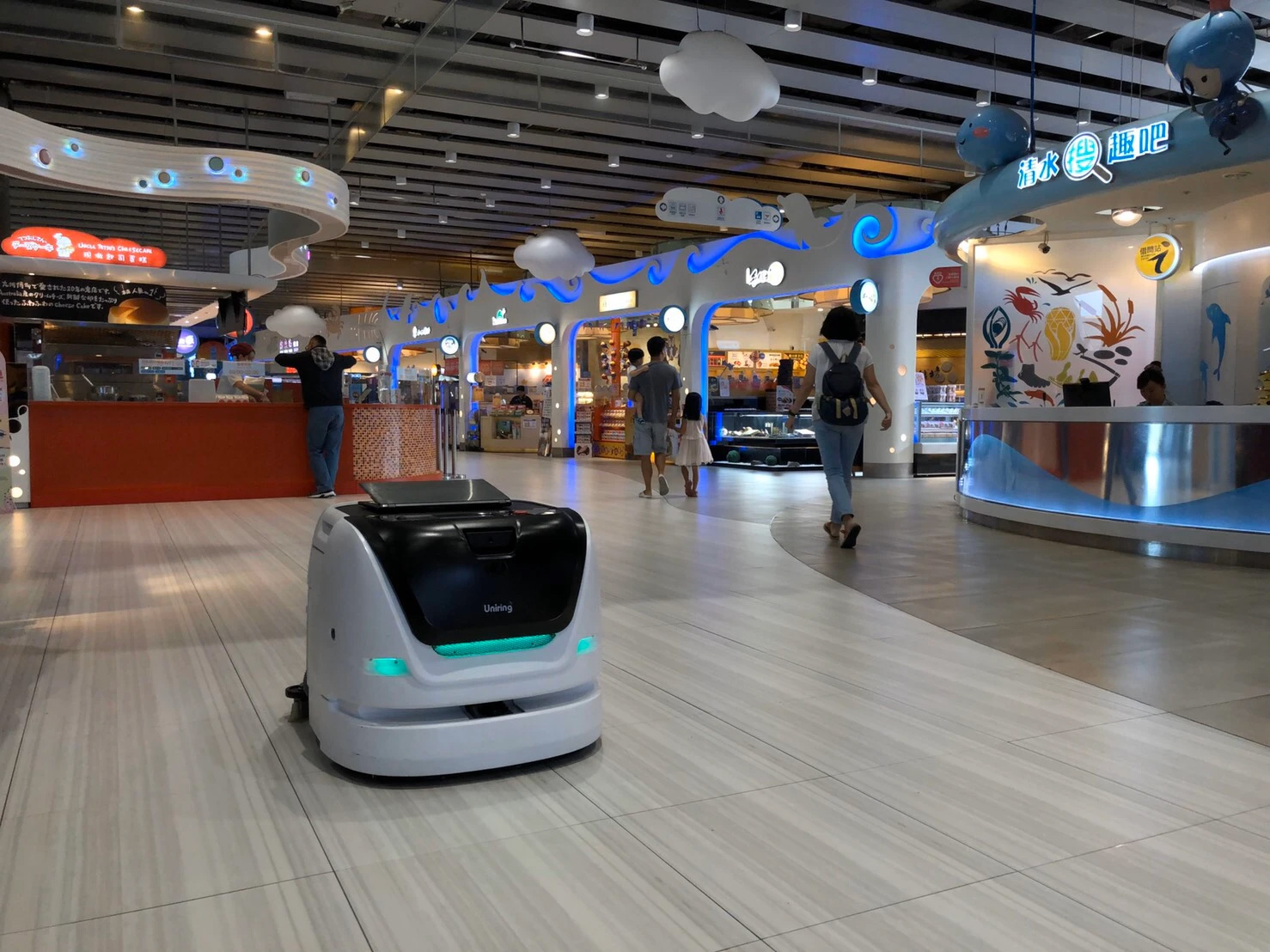

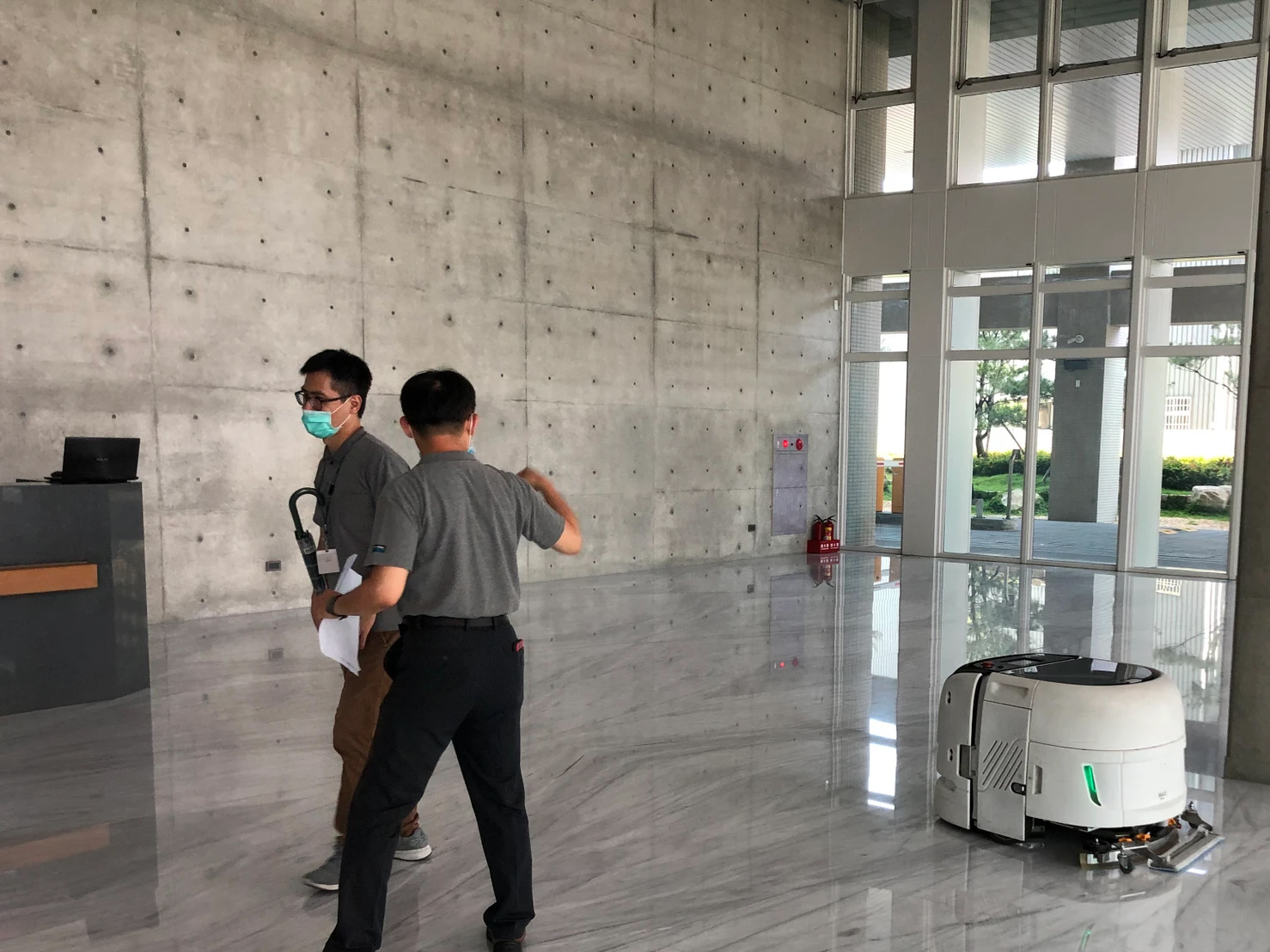

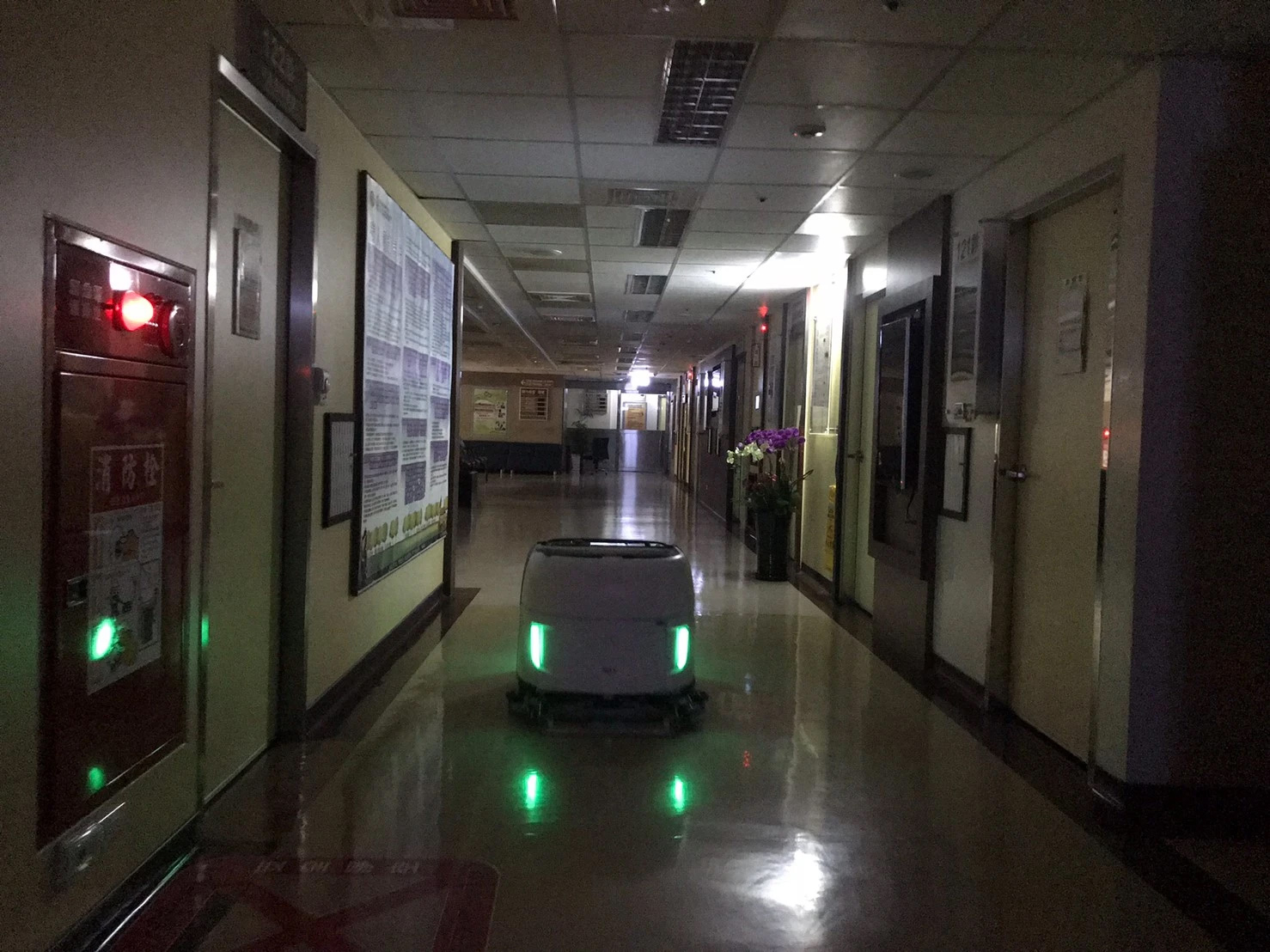

Gallery
