Professional
UV Disinfection Robot
Automatic Disinfection with premium technology and safe materials
PROFESSIONAL UV DISINFECTION ROBOT
Our UV disinfection robot offers automatic disinfection with premium technology. Our robot uses 100% safe materials with ultra-high energy sterilization, and our robot is an environmentally-friendly UV robot. It is also equipped with a pure quartz ultraviolet germicidal lamp for disinfection. This UV disinfection robot emits light at 254nm and offers infrared detection, making it a premium UV robot.
 |
Simple OperationBy simple app to achieve function and tasks setting |
|---|---|
 |
Safe & Environment friendlyBy pure quartz ultraviolet germicidal lamp for disinfection, free of disinfectants |
 |
High efficiencyUp to 1500μW/c㎡, sterilization rate＞99.999% |
 |
Premium UV lampFrom top brand LightSources, emitting light at 254nm |
 |
Reliable protectionBy multi security protections and infrared detection, incase UV light leAKage to body |
Working Process
- The staff builds the map, sets the disinfection path and task (immediate/timed)
- Start to work
- The robot departs autonomously and starts patrolling along the disinfection
- Automatic avoidance of obstacles
- return to autocharge
Product Specification
Size:
Diameter 530mm x Height 1375mmMoving Speed:
0.3m/sWeight:
55.6kgUV light wavelength:
254nmPassage Width:
750mmCharging way:
Automatic ChargingLamp Power:
410W (41W/pcs, 10 pcs)Circle life of Lamp:
10000 HoursUV radiation direction:
360°omnidirectionalsSterilization level:
bacteria, fungi, germs, etc. on the surface of objects and in the airUV sterilization rate:
UV power: 16W*10; total irradiation intensity: 1500μW/c㎡Safety protection:
emergency stop, remote control switch, human body inductionMedical grade sterilization High intensity radiation 99.99% sterilization rate
It has passed the EU CE certification and cma testing certification of national authority, and meets the technical specifications and standards for disinfection of medical institutions
Within 1m from the geometric center of the robot, the irradiation intensity reaches the maximum of 492.2μM/cm2, 99.99% covid-19 virus elimination rate needs to stay 48.92 minutes; With the increasing distance, the irradiation intensity decreases in turn.

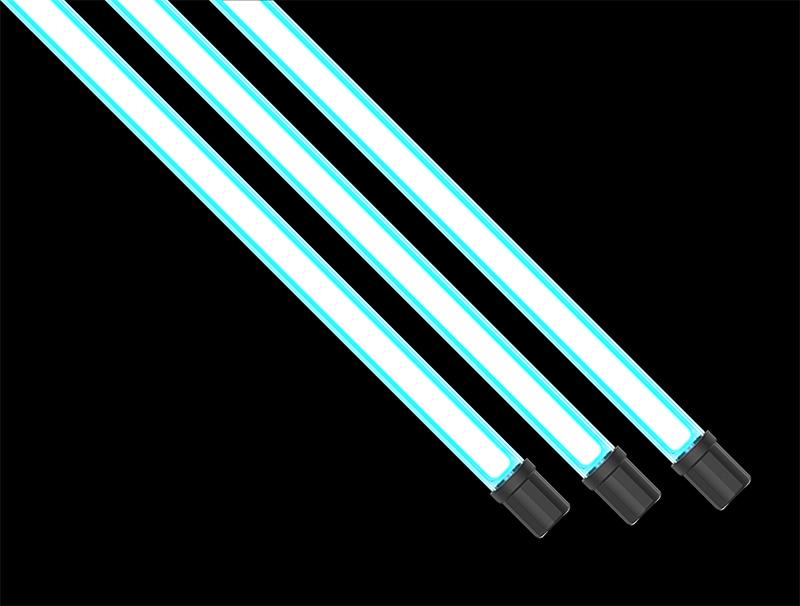

Philips Quartz Germicidal Lamp Tube, 254nm wavelength
Pure quartz ultraviolet sterilization lamp tube with the strongest sterilization band of 254 nm is adopted, and 6 professional ultraviolet lamps are arranged in an integrated and surrounding manner, so there is no dead angle for disinfection. No chemical disinfectant, no corrosion of object surface, no liquid mercury, no harmful substances, environmental disinfection, and no secondary pollution.
Autonomous positioning, intelligent obstacle avoidance
The SLAM technology of laser radar can directly draw high- precision environmental maps. The content of the map can be directly used for subsequent robot navigation and path planning. The autonomous positioning and navigation technology can detect static or dynamic obstacles in its route planning through sensors. Intelligent obstacle avoidance function
Sensitive Motion Sensors
Equipped with Infrared sensor light, the robot will shut down the UV lamps if it detects a person within 3 -5 meters. 3 infrared sensor lights around the top assures 360° detection coverage.

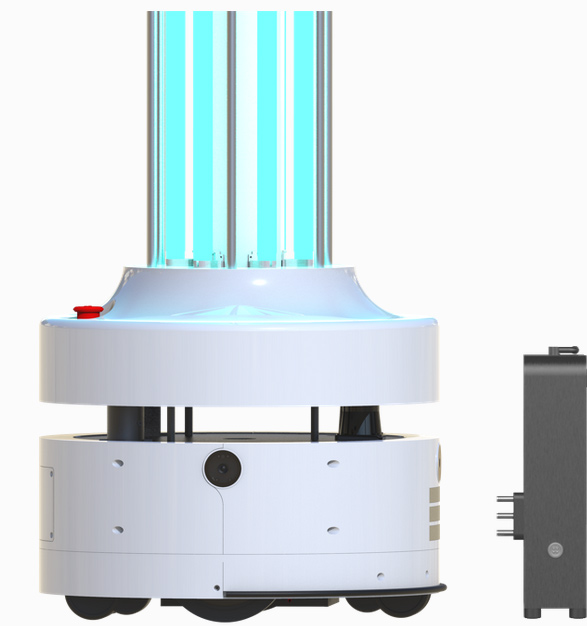

Automatic Recharging
BKS-UV-200S is equipped with a charging dock. 3.5 hours charging time. After finishing the disinfection task, if only 10% power left, it will back to the charging dock to get fully charged and ready for the next task, it requires no contact from human, time-saving and high safety.

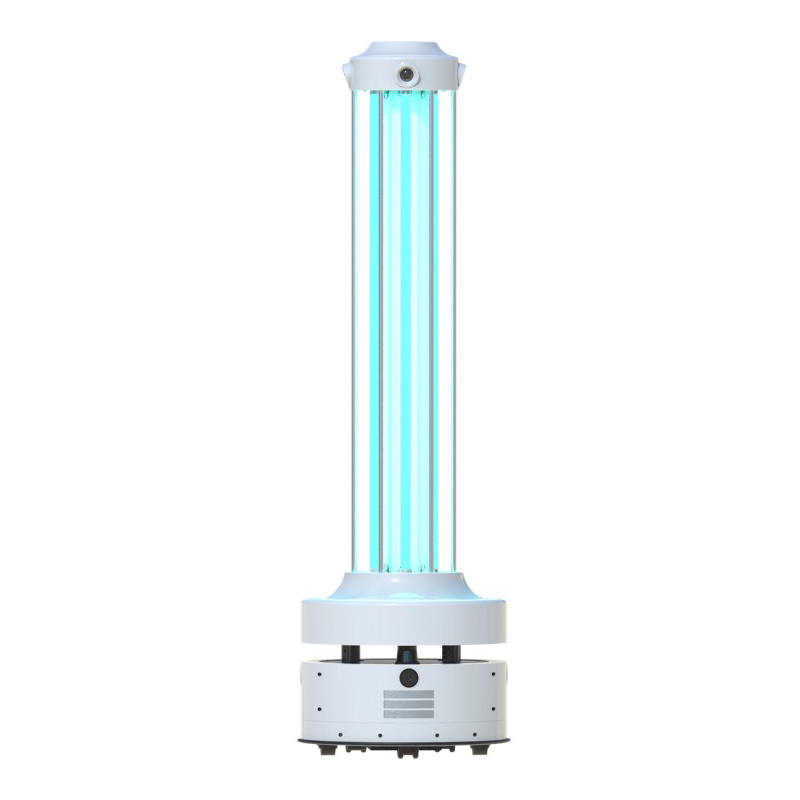

Medical-Graded Disinfection
UV Disinfection Robot 200s

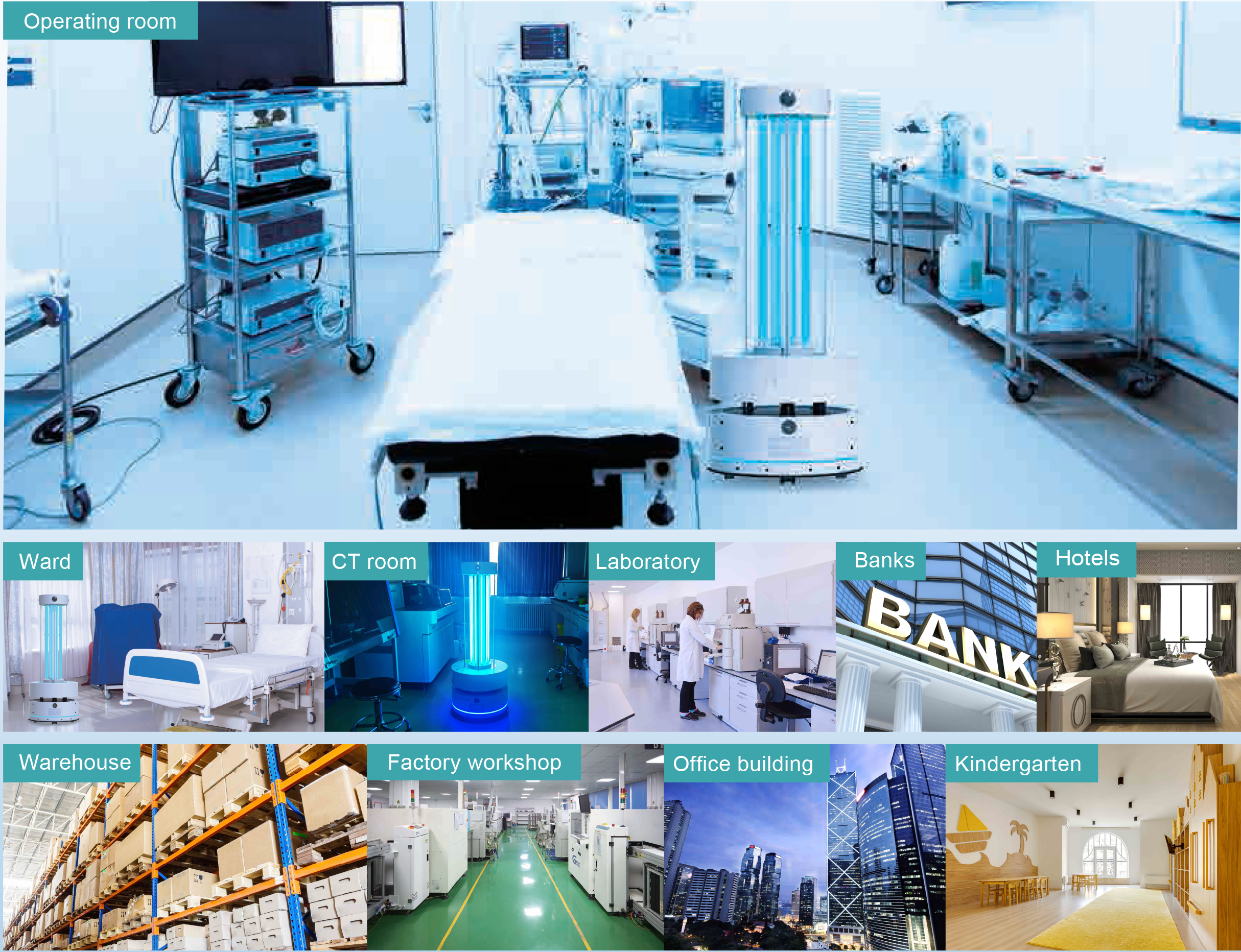

APPLICATION SCENARIOS
